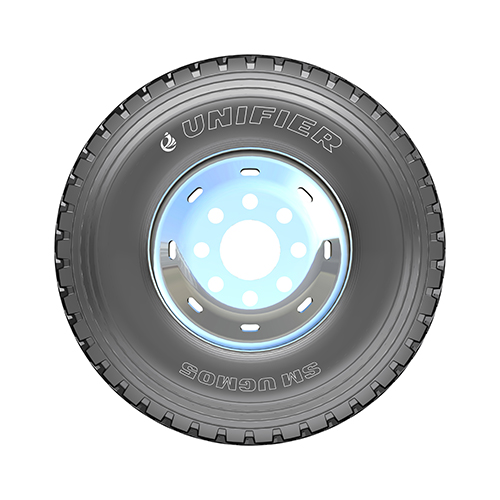

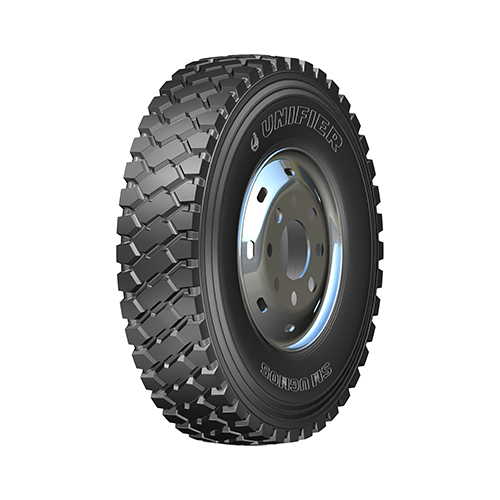

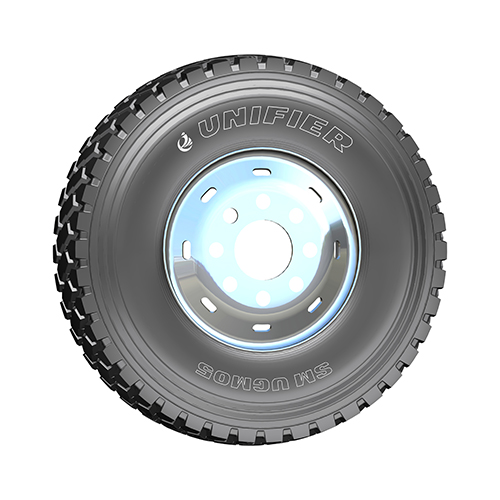

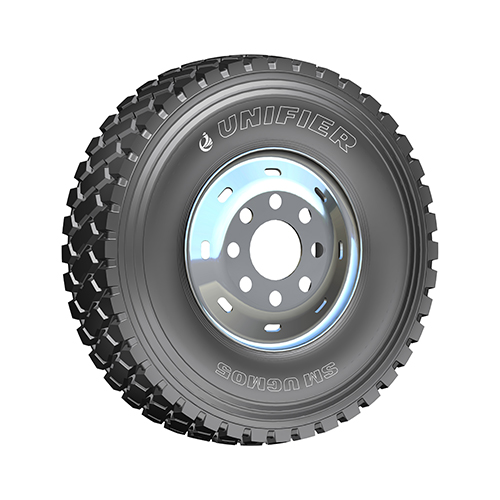

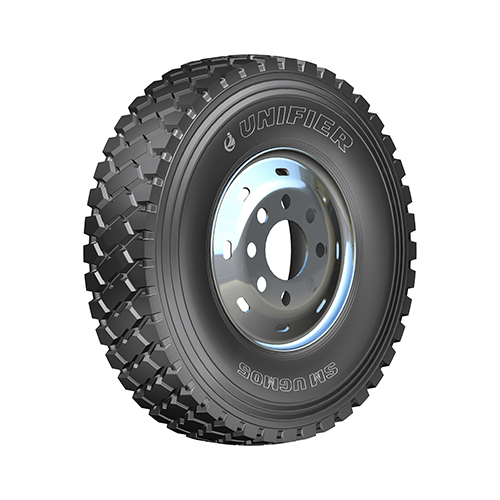

SMART/SM UGM05

Usage & advantages
● High Traction for Off-Road Usage
● Durability &Extended Service Life
Features &Benefits:

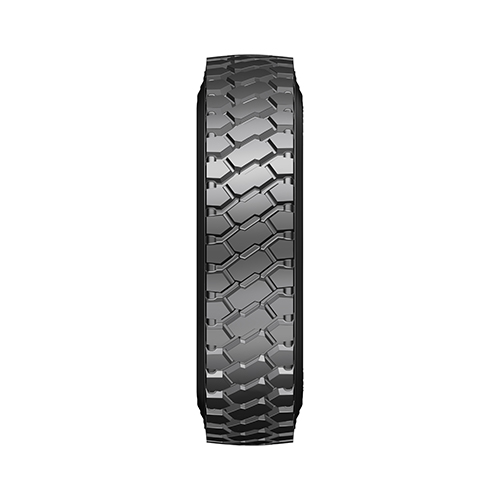

● Aggressive block pattern and open shoulder design-Provides high traction,with self-cleaning performance
● Deep tread pattern design--Provide longer tire service life
● Reinforced casing and bead structure--Improves durability of casing and bead,and increasing tire damage resistance in heavy load operating conditions
● Specially formulated tread compound--Provides strong cut and chip resistance on tough off road conditions
SizePRLi&SiStandard rims (inch)

Section width

(mm)

Outer diameter (mm)Single/Dual Max.Load(kg)Single/Dual max. (kPa)

Rolling Cirf.

(mm)

Tread Depth (mm)TL/TT
295/80R22.518152/149J9.0023510623550/3250900/9003239.123TL
315/80R22.520157/154G9.0024610824125/3750900/9003300.123TL
12.00R2420160/157F8.5024412384500/4125900/9003775.923TT
12.00R2022158/155F8.5024411364250/3875970/9703464.821.5TT
